    • SCR Series Air Compressor
      Writer: SCR Series Air Compressor From: SCR Series Air Compressor
      Size: Big Medium Small Time: 2017-05-04 09:55:42

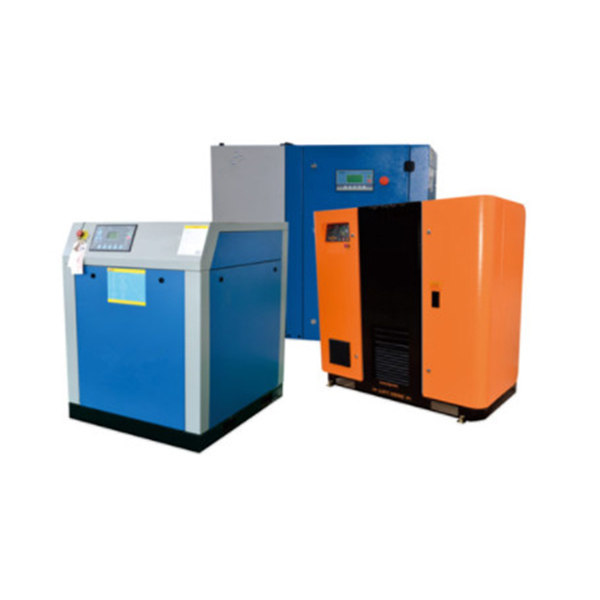

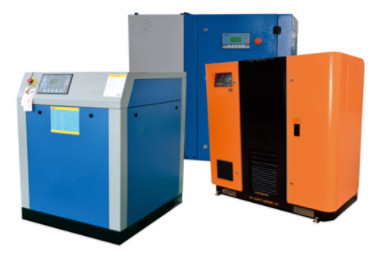

      Our oil injection screw air compressor adopts multi-module design. Our domain expertise has enabled us to come with a remarkable best quality air compressor to our valued clients. According to your expected cost requirement, you can choose belt conveying type with low cost, direct connection type with low noise and highly efficient and energy saving frequency conversion type.


      The air compressor adopts intelligent microcomputer controller. Coordinating with pressure, temperature, current and signal, it can provide 12 important indicator warnings and 13 omnibearing safety protection measures. Its other functions: Chinese and English display switchover and maintenance time limit reminder. RS485 communication interface realizes multi-machine joint control, which makes the customers learn about the condition concisely and roundly.


      Air compressor application:
      The air compressor is used in complete set of engineering production line, and is the air power source of the following equipments: color sorter, corn milling machine, packing machine, pulse dust collector.

                          Air Compressor

      Model

      Power

      Motor

      Gas Displacement

      Pressure

      Boundary Dimension

      Weight

      Outlet Size

      SCR5.5P - 7/8/10/12.5

      4

      5.5

      0.65/0.6/0.5/0.4

      7/8/10/12.5

      1025*465*995

      200

      Rc 1/2

      SCR7.5P - 7/8/10/12.5

      5.5

      7.5

      0.85/0.8/0.7/0.6

      7/8/10/12.5

      1025*465*995

      270

      Rc 1/2

      SCR10P - 7/8/10/12.5

      7.5

      10

      1.1/1.0/0.9/0.8

      7/8/10/12.5

      1190*625*1215

      270

      Rc 1/2

      SCR7.5M - 7/8/10/12.5

      5.5

      7.5

      0.85/0.8/0.7/0.6

      7/8/10/12.5

      680*900*970

      250

      Rc 1/2

      SCR10M - 7/8/10/12.5

      7.5

      10

      1.1/1.0/0.95/0.85

      7/8/10/12.5

      680*900*970

      250

      Rc 1/2

      SCR15M - 7/8/10/12.5

      11

      15

      1.6/1.5/1.3/1.1

      7/8/10/12.5

      800*950*1130

      380

      Rc 3/4

      SCR20M - 7/8/10/12.5

      15

      20

      2.3/2.2/1.9/1.7

      7/8/10/12.5

      800*950*1130

      420

      Rc 3/4

      SCR25M - 7/8/10/12.5

      18.5

      25

      3.2/2.9/2.4/2.1

      7/8/10/12.5

      900*1150*1350

      560

      Rc 1

      SCR30M - 7/8/10/12.5

      22

      30

      3.8/3.5/3.2/2.9

      7/8/10/12.5

      900*1150*1350

      580

      Rc 1

      SCR40M - 7/8/10/12.5

      30

      40

      5.1/4.8/4.1/3.7

      7/8/10/12.5

      900*1150*1350

      640

      Rc 1

      SCR50M - 7/8/10/12.5

      37

      50

      6.4/6.1/5.7/5.1

      7/8/10/12.5

      1000*1300*1470

      800

      Rc1 1/2

      SCR60M - 7/8/10/12.5

      45

      60

      7.7/7.5/6.8/6.0

      7/8/10/12.5

      1000*1300*1470

      920

      Rc1 1/2

      SCR75M - 7/8/10/12.5

      55

      75

      10.4/9.4/8.4/7.8

      7/8/10/12.5

      1800*1450*1570

      1540

      Rc2

      SCR100M - 7/8/10/12.5

      75

      100

      13.8/12.9 /11.7/9.6

      7/8/10/12.5

      1800*1450*1570

      1650

      Rc2

       ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
